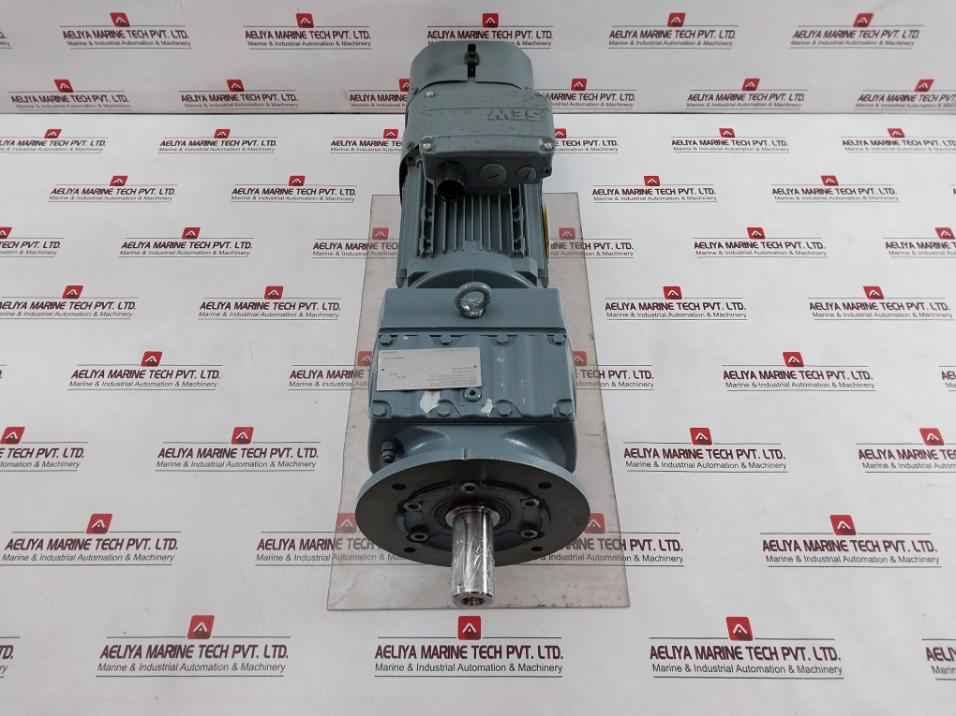

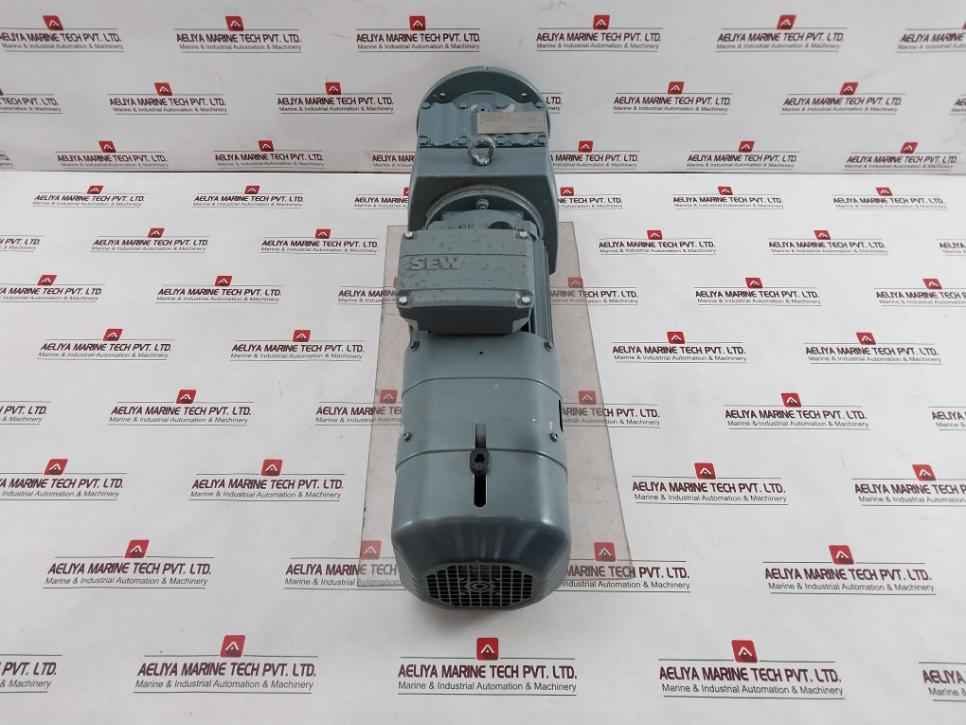

Sew-eurodrive Drn90L4/Be1Hf/Fg/Es7C Geared Motor Ct 700-1800Rpm 1.5Kw

Sew-eurodrive Drn90L4/Be1Hf/Fg/Es7C Geared Motor Ct 700-1800Rpm 1.5Kw
Sew-eurodrive
Drn90L4/Be1Hf/Fg/Es7C
01.7818747501.0001.19
50 Hz Rpm 1461
Inverter Duty Vpwm
3Ph.Iec60034
V 220-230Δ/380-400Υ
Ip 55
Tefc
Kw 1.5 S1
A 6,00/3,45
P.F.0,74
Nom.Eff.% 85,6 Ie3
Kw 1.5 S1
A 5,20/3,00
P.F.0,70
Nom. Eff.% 86,5 Ie3
60 Hz Rpm1767
V 254-266Δ/440-460Υ
K.V.A-code M
Th.Cl.155(F)
S.F. 1.0
Mlf1
Design Nema A
Ct 700-1800Rpm
Vbr 380-480 Ac
Ff Fg130 D160
We 14
Nm10
Im M1
Kg 26.198
Amb °C-20..40
188 685 1En
Efficiency: 85.6
E189357
Cc056A
Rf67 Drn90L4/Be1Hf/Es7C
23.0110754501.0001X19.32
Na R/Min 1461/32
Ma Max Nm 600
Clp 220 Miner.Oil/1.20 I
Im M1
I 46.29
06416071 En
8X15A
Gct6
65/N12
064121
Bau3Slx2

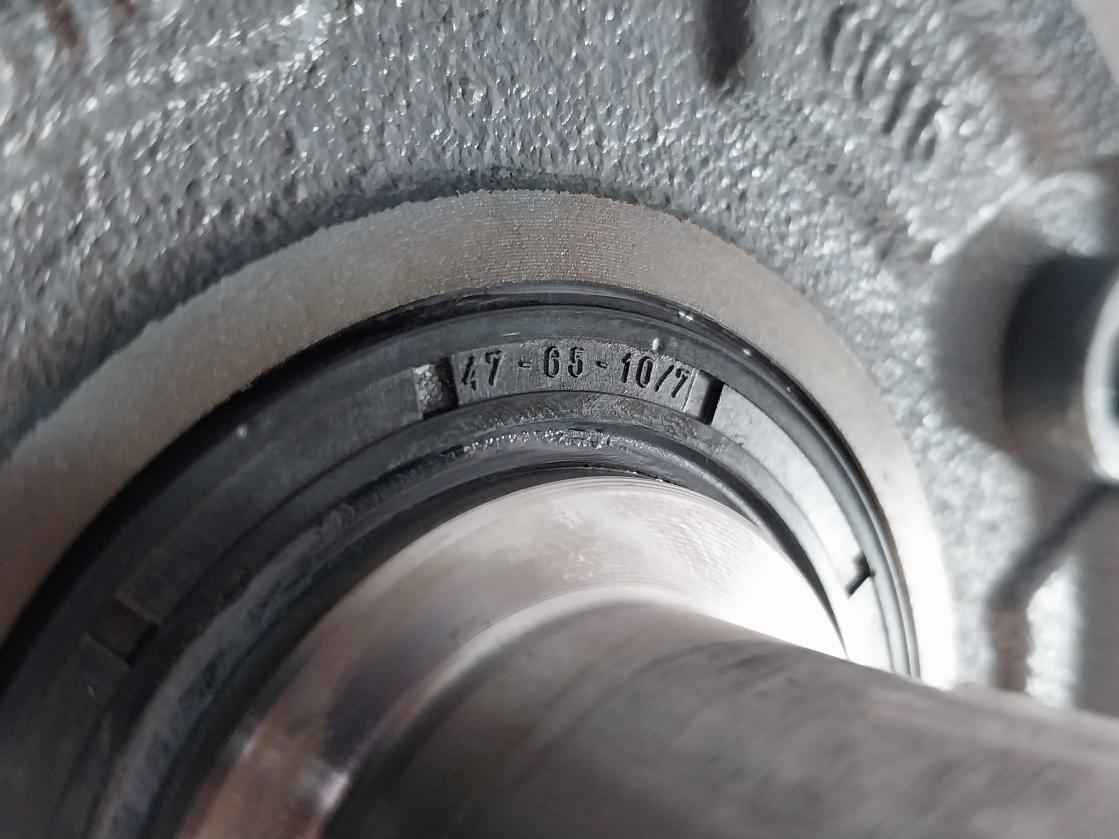

47-65-10/7
Cf W 2
1361 063 5/10
1 9227A
Tv2400
Vk-h+H A7 10
Tv2399
Vk-h+H 35 8
Drn90L4
1.5Kw

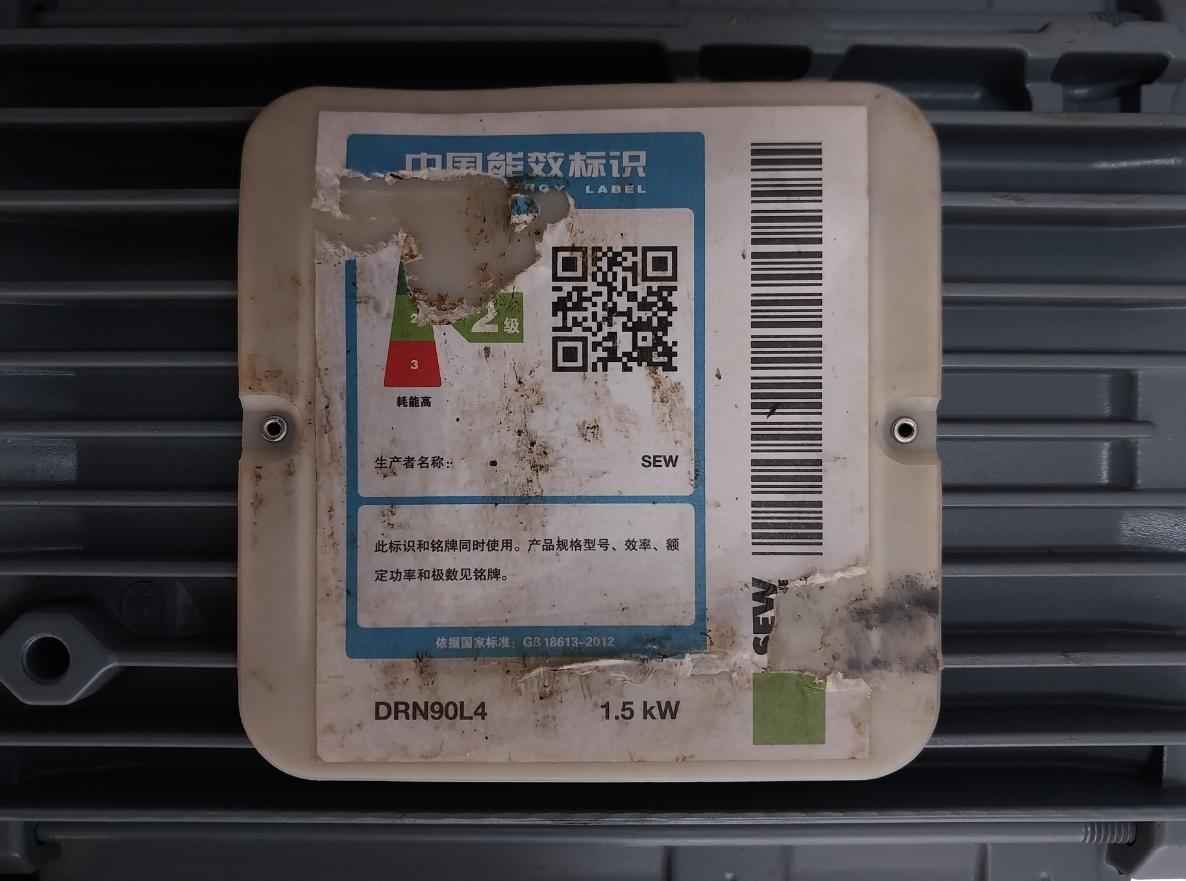

According To National Standards: Gb18613-2012
Made In France
Assembled In India
Weight: 52.500 Kg
