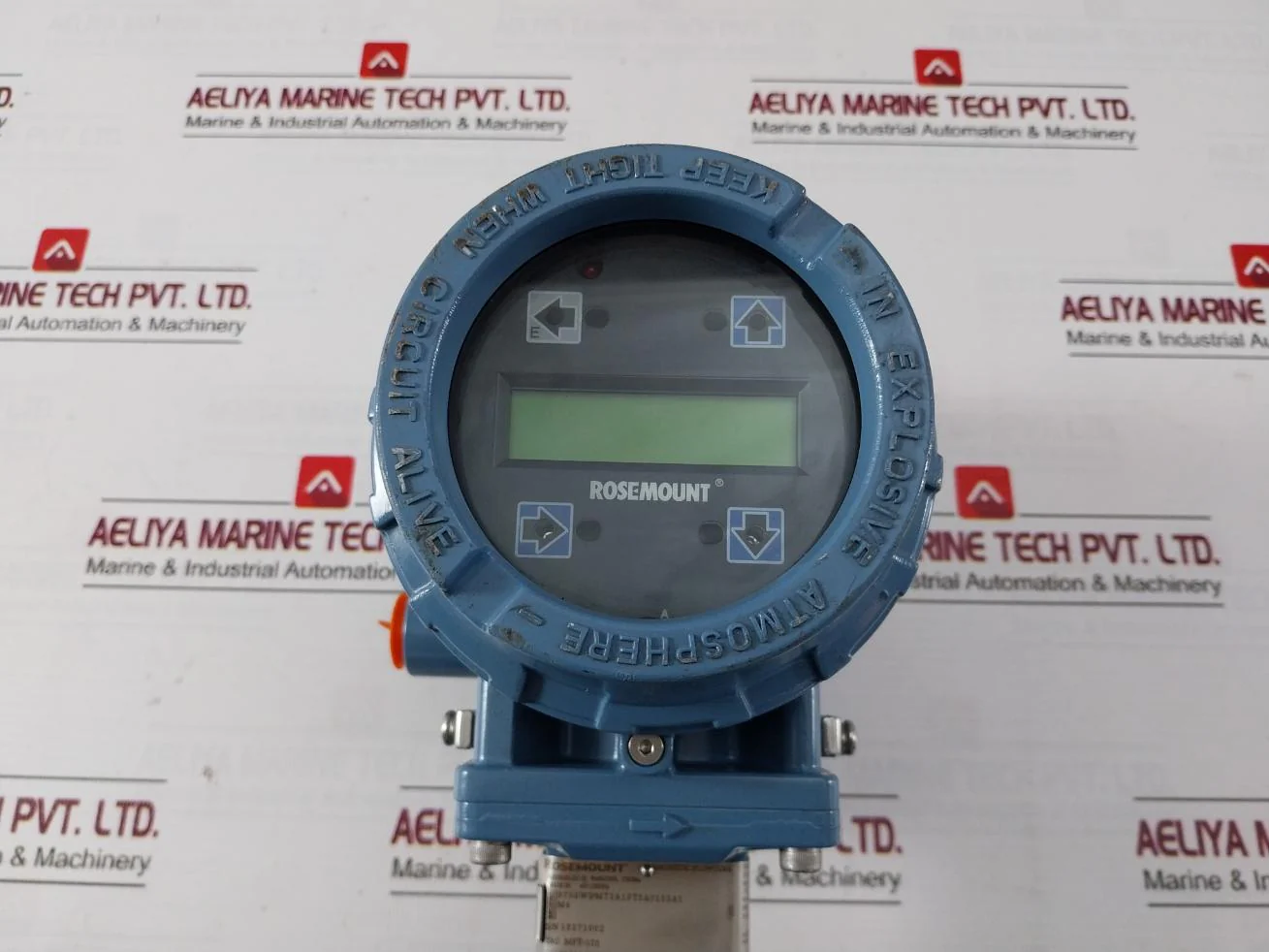

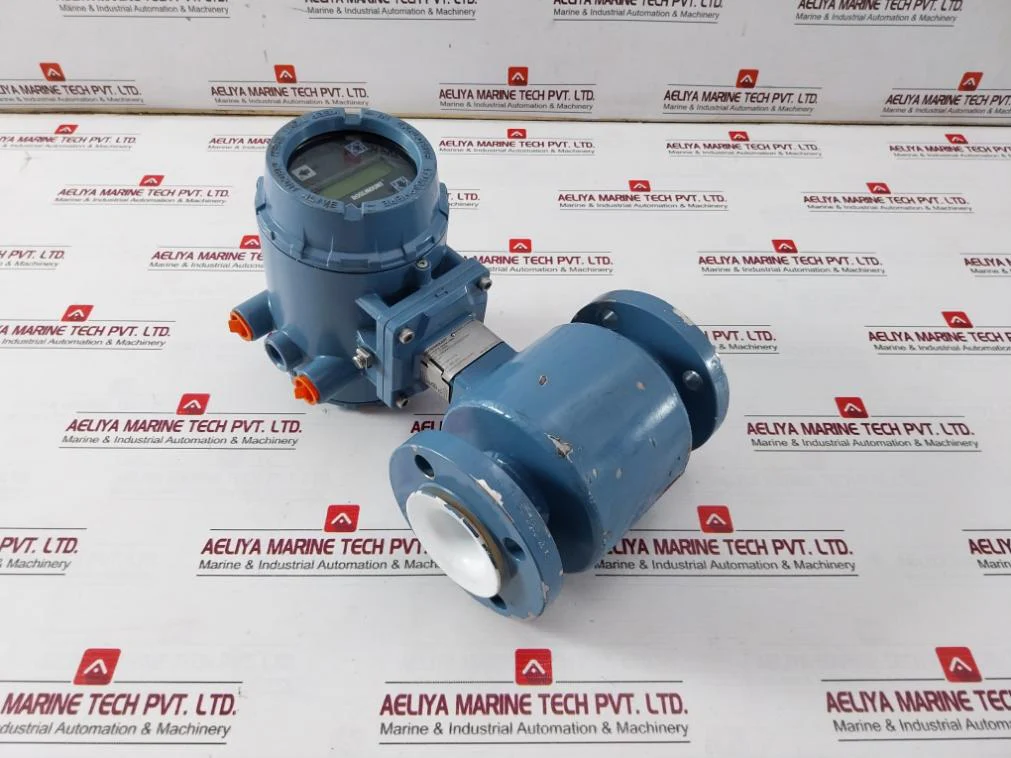

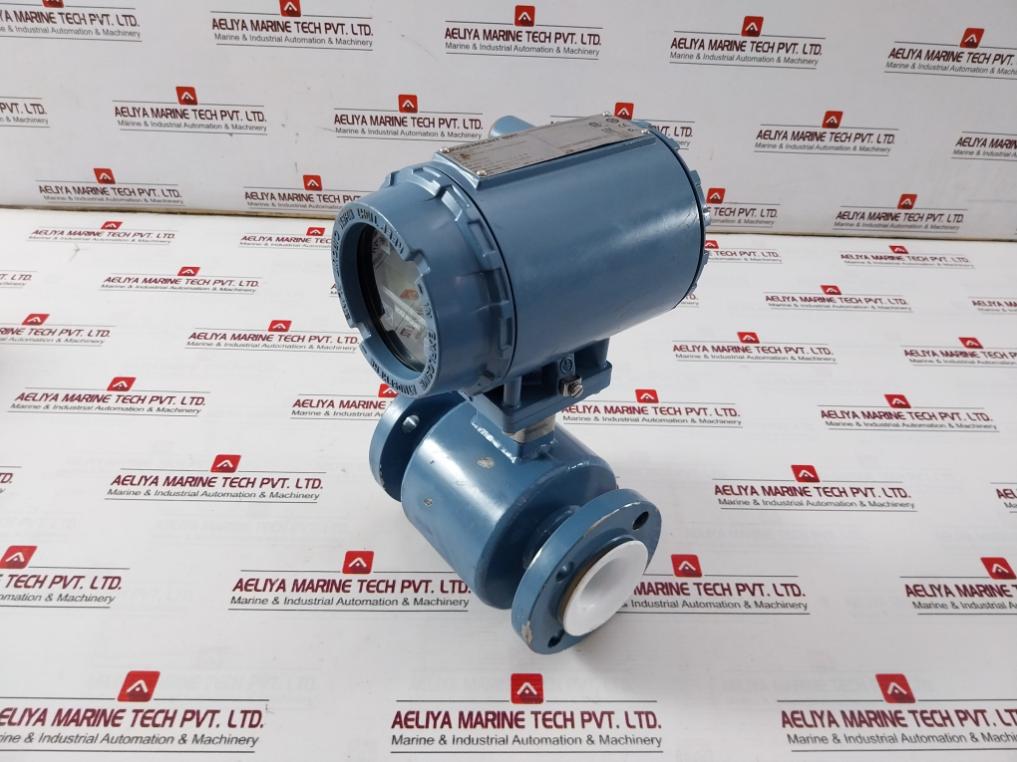

Rosemount 8750Wdmt2A1Ftsa015Sa1 M4 Magnetic Flowtube Transmitter 12-42Vdc 1.2A

Rosemount 8750Wdmt2A1Ftsa015Sa1 M4 Magnetic Flowtube Transmitter 12-42Vdc 1.2A
Rosemount
Hart Communication Protocol
Magnetic Flowtube

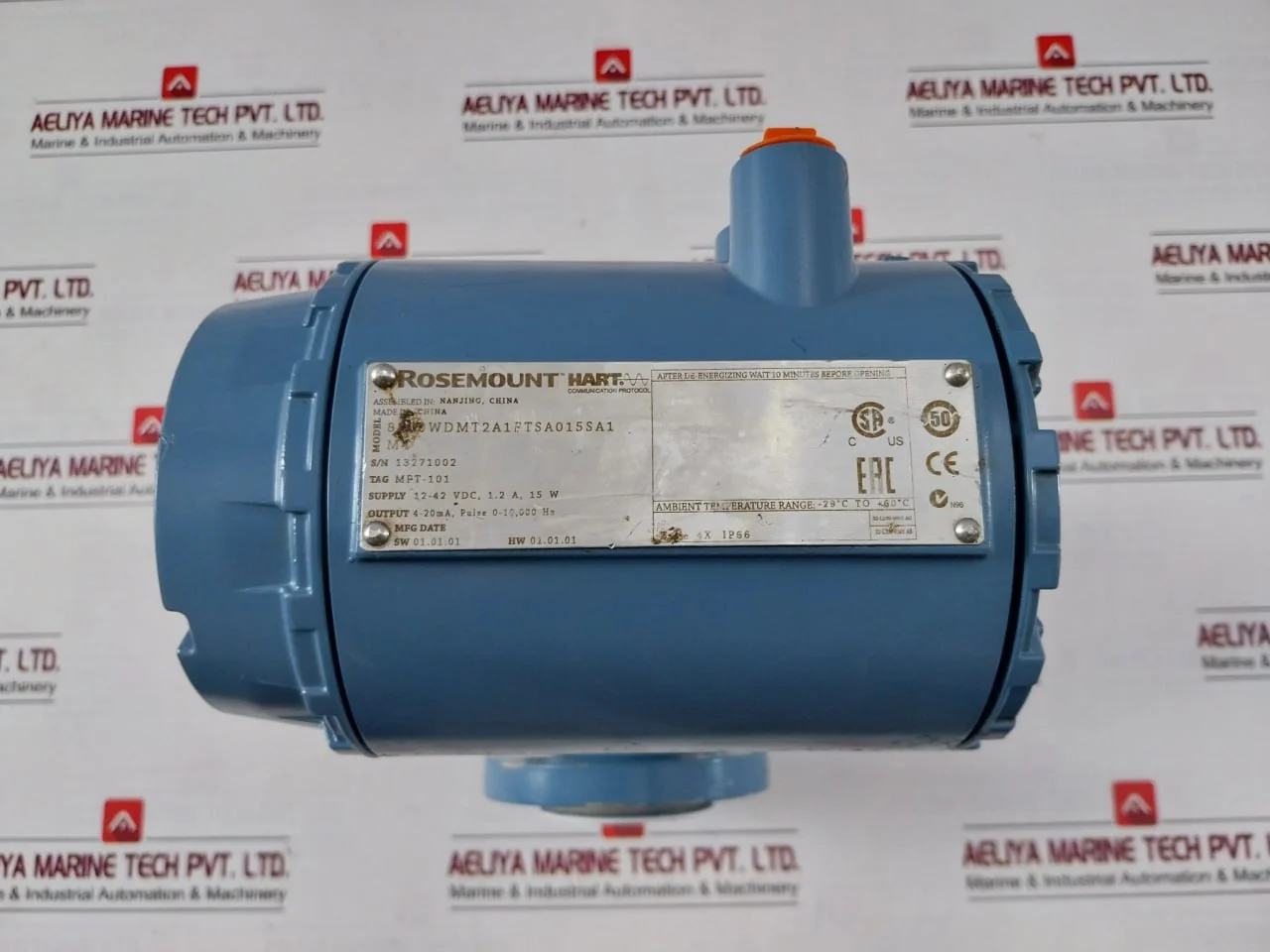

Model: 8750Wdmt2A1Ftsa015Sa1 M4
Tag: Mft-101
Cal# 091245709120005
Supply: 12-42 Vdc, 1.2A, 15W
Output: 4-20Ma, Pulse 0-10,000 Hz
Sw: 01.01.01
Hw: 01.01.01
Ambient Temperature Range: -29°C To +60°C
Type 4X Ip66
32-l100-0001 Ag
32-l200-0301 Ab
Max. Process Pressure @100°F/38°C: 275 Psig/1.90 Mpa
Process Temperature Range: -20°F/-29°C To 350°F/177°C
05-l100-0003 Ag
05-l200-0301 Ab
Electrical Parameters:
Coil Electrode
Excitation: Circuit:
500 Ma 5V
40V Max 200µA
20W Max 1Mw
Type 4X Ip66/68/69K
Label: 08732-0829-0012 Rev Ac
Label: 08732-0830-0002 Ab
Label: 08732-0830-0001 Aa

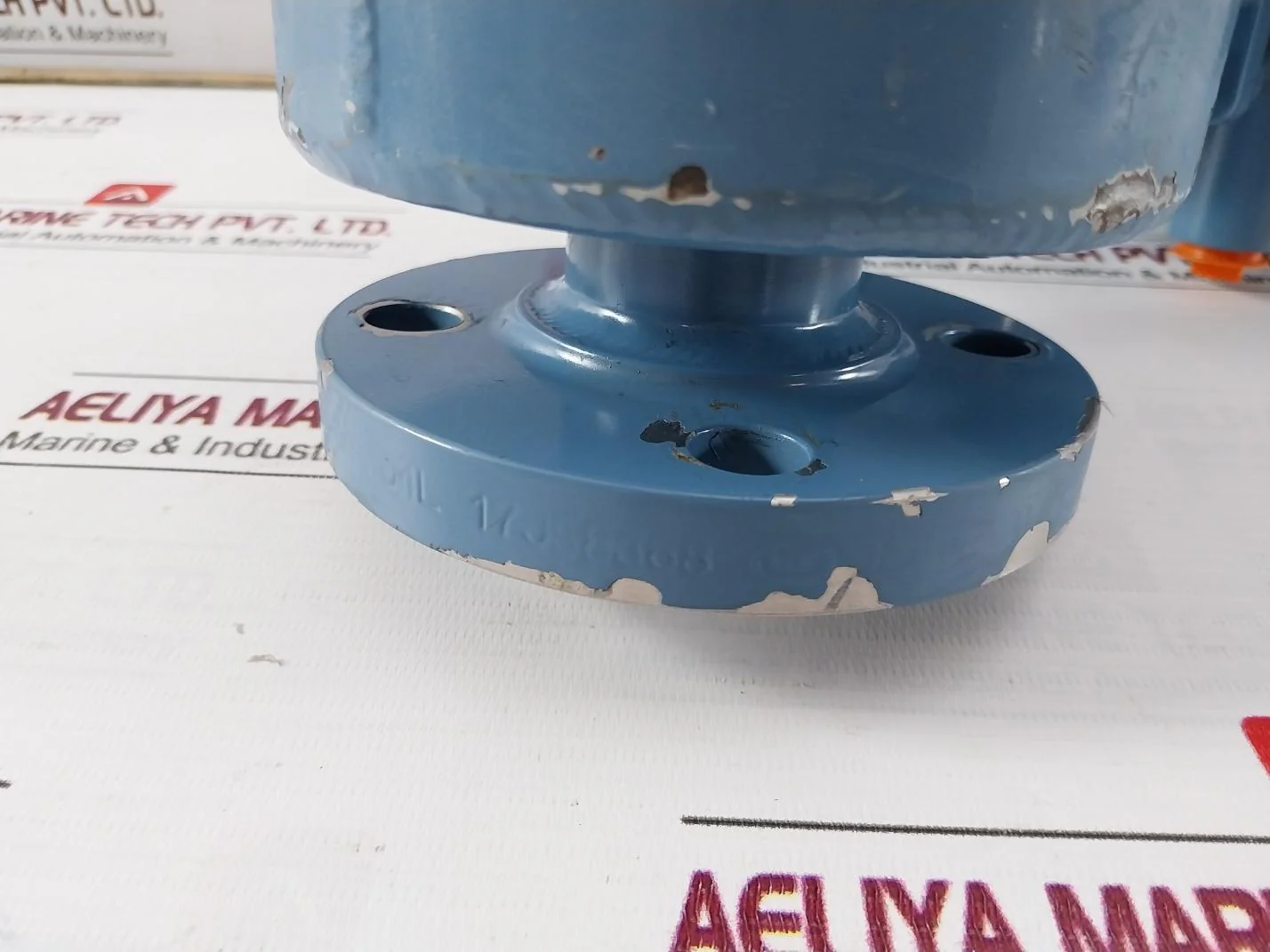

B16.5 1.5 150A 182 F304/F30L
13271002
Assembled In China
Made In China
Weight: 9.550 Kg
