Rosemount 8750Wdmt1A1Fnsa040Ca1M4 Magnetic Flowmeter Rev: Ac 285Psig/1.96Mpa

Rosemount 8750Wdmt1A1Fnsa040Ca1M4 Magnetic Flowmeter Rev: Ac 285Psig/1.96Mpa
Rosemount
Hart Communication Protocol
Magnetic Flowtube
Model: 8750Wdmt1A1Fnsa040Ca1M4
Cal#: 0869205508649005

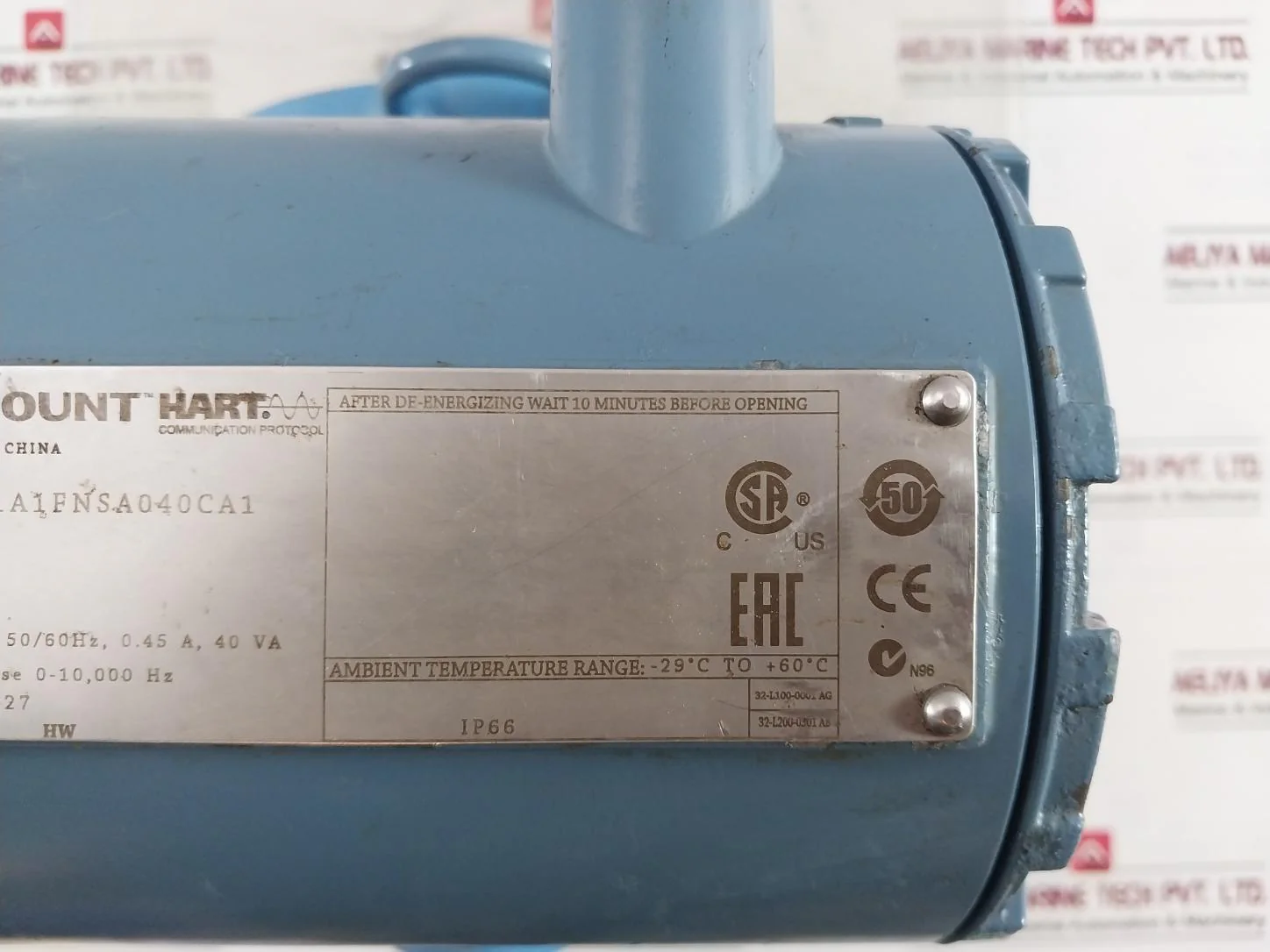

Supply: 90-250 Vac 50/60Hz, 0.45A, 40Va
Output: 4-20Ma, Pulse: 0-10,000 Hz
Max.Process Pressure @ 100°F/38°C
285Psig/1.96Mpa
Process Temperature Range:
0°F/-18°C To 176°F/80°C
Ambient Temperature Range: -29°C To +60°C
05-l100-0003 Ag
05-l200-0301 Ab

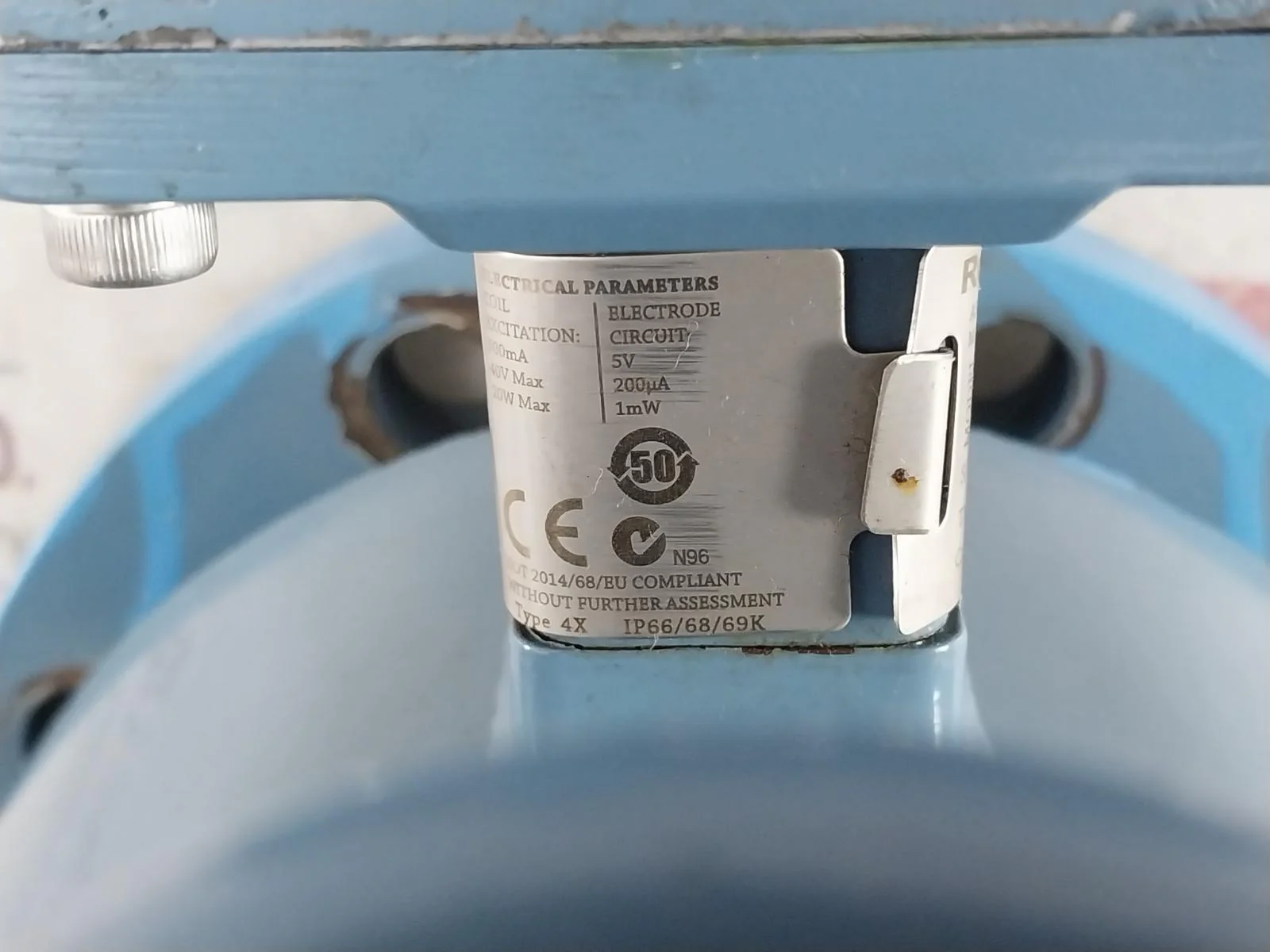

Electrical Parameters
Coil Electrode
Excitation: Circuit
500Ma 5V
40V Max 200µA
20W Max 1Mw
Type 4X Ip66/68/69K
32-l100-0001 Ag
32-l200-0301 Ab
Label: 08732-0829-0011 Rev: Ac
08712-0571-0008 Rev: Ac
B654 150 A105 Cs 17-106042
Made In China
Assembled In China
Weight: 22.150 Kg
