Rosemount 8705Ate010P1M0K1 Magnetic Flow Meter Sensor 275 Psig/1.90 Mpa Rev: Ab

Rosemount 8705Ate010P1M0K1 Magnetic Flow Meter Sensor 275 Psig/1.90 Mpa Rev: Ab
Rosemount
Magnetic Flowtube
Model: 8705Ate010P1M0K1
Cal#: 1219906012188005
Max Process Pressure: 100°F / 38°C
275 Psig / 1.90 Mpa
Process Temperature Range: -20°F / -29°C To 350°F / 177°C

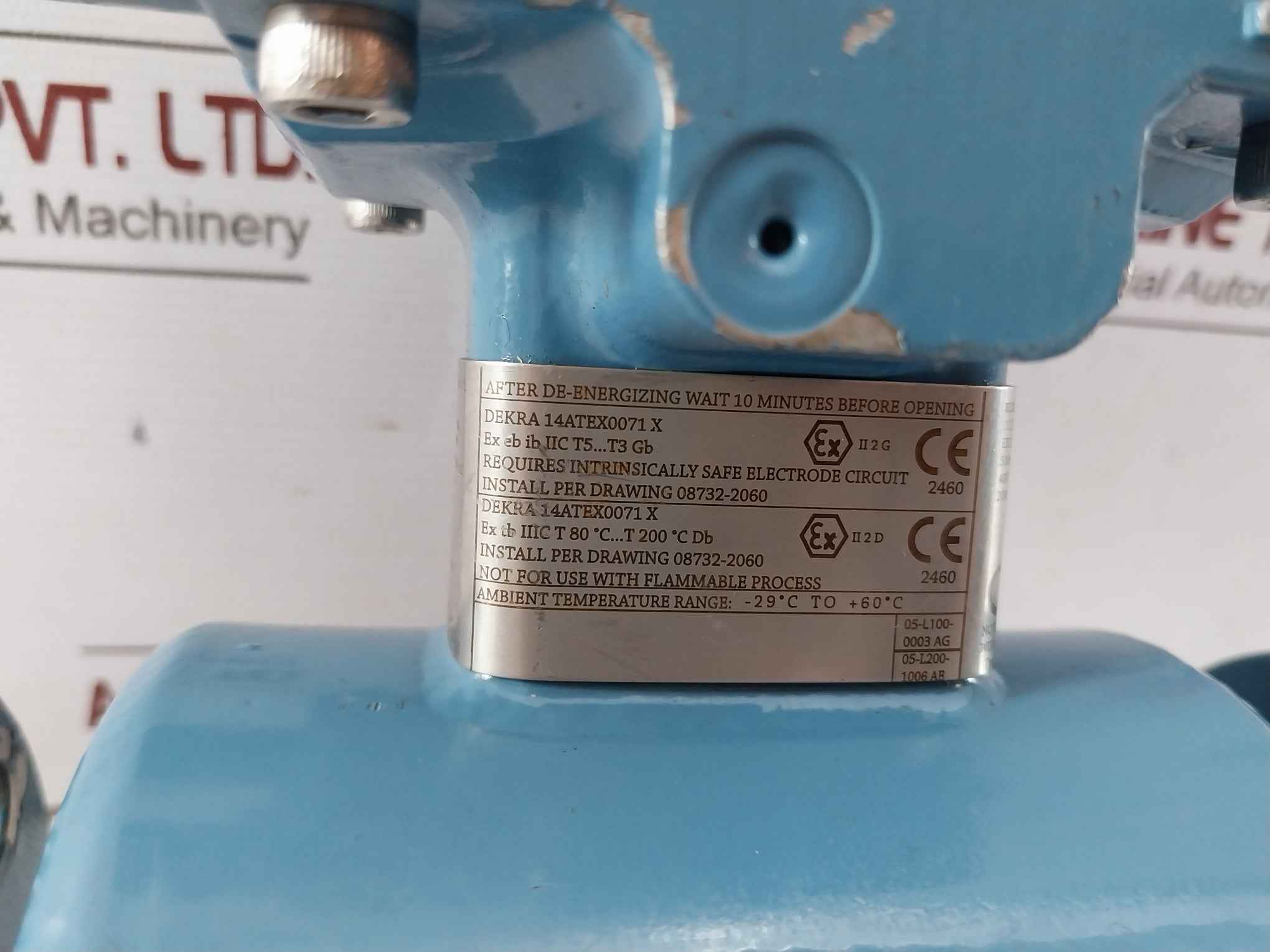

Dekra 14Atex0071X
Ex Eb Ib Iic T5…T3 Gb
Ex Tb Iiic T80°C…T200°C Db
Ambient Temperature Range: -29°C To +60°C
05-l100-0003 Ag
05-l200-1006 Ae
Electrical Parameters
Coil                       Electrode
Excitation:      Circuit:
500Ma                  5V
40V Max             200µA
20W Max            1Mw
Type 4X Ip66/68
Label: 08732-0829-0022
Rev: Ab
08712-0571-0011
08712-0571-0012
Rev: Aa
Ambient Temps 50°C Require All Wiring Be Rated To At Least 90°C
Process Temps 140° Require All Wiring Be Rated To At Least 125°C
Assembled In China
Made In China
Weight: 6.550 Kg
