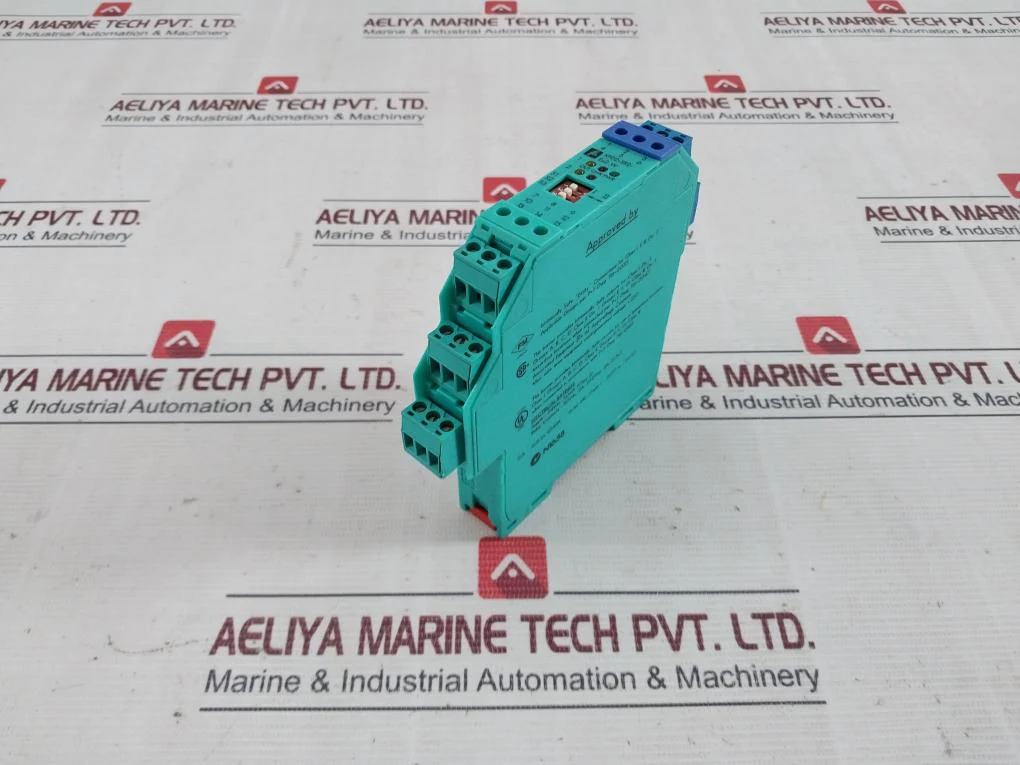

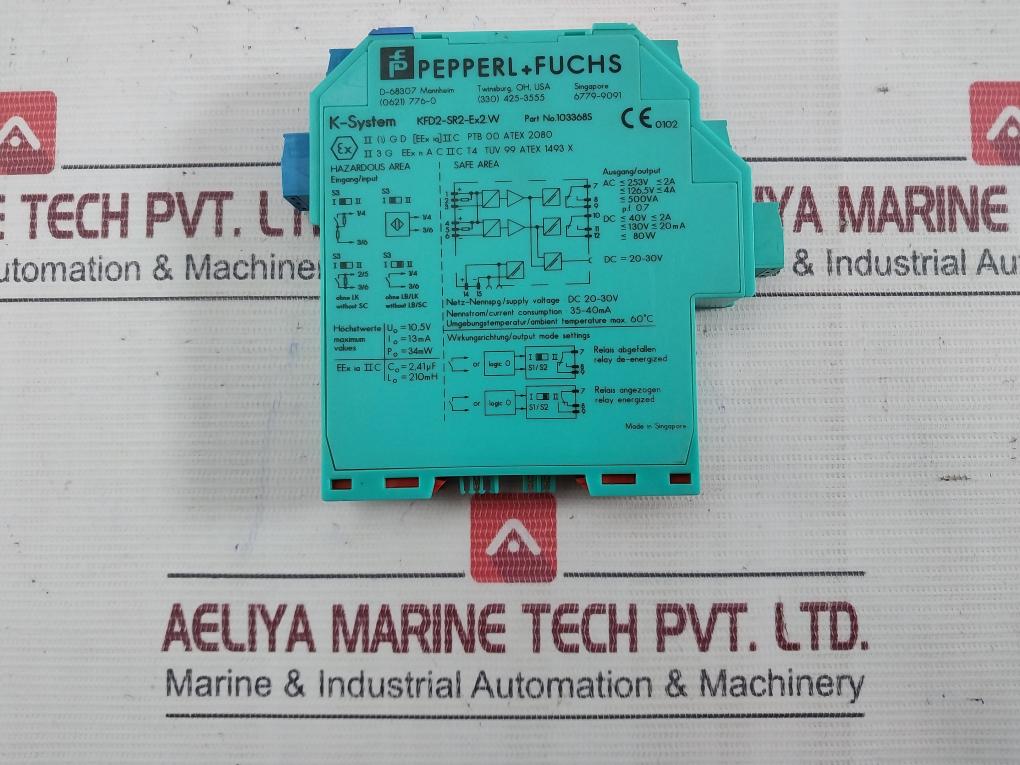

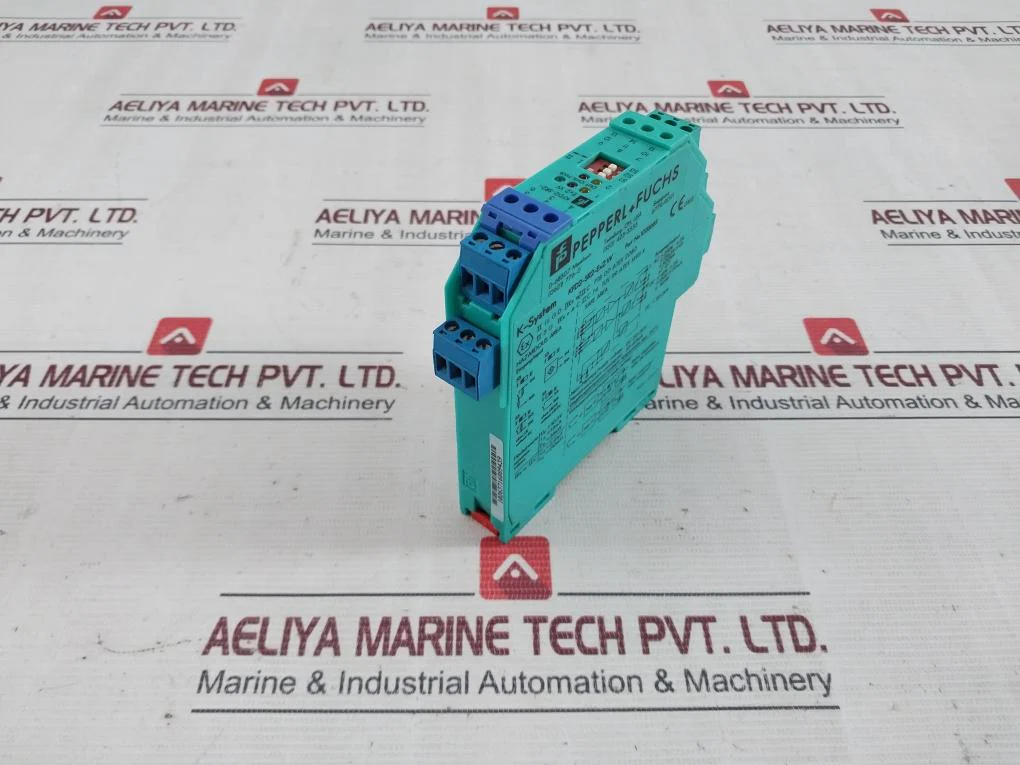

Pepperl+Fuchs Kfd2-sr2-ex2.W K-system Switch Amplifier 20–30Vdc 35–40Ma

Pepperl+Fuchs Kfd2-sr2-ex2.W K-system Switch Amplifier 20–30Vdc 35–40Ma
Pepperl+Fuchs
K-system
Kfd2-sr2-ex2.W
Part No.: 103368S
Ii (1) G D [Eex Ia] Iic Ptb 00 Atex 2080
Ii 3 G Eex N A C Iic T4 Tuv 99 Atex 1493 X
Maximum Values:
Uo= 10,5V
Io= 13Ma
Po= 34Mw
Eex Ia Iic:
Co= 2,41µF
Lo= 210Mh
Output:  Ac 253V 2A
126,5V 4A
500Va
P.F. 0.7
Dc 40V 2A
130V 20Ma
80W
Supply Voltage: Dc 20-30V
Current Consumption: 35-40Ma
Ambient Temperature Max: 60˚C
Supply: 24Vdc, 50Ma (Class 2)
Relay Contacts: 30Vdc, 2A; 250Vac, 2A, 0.7 P.F.
Made In Singapore
Weight: 160 Gm
