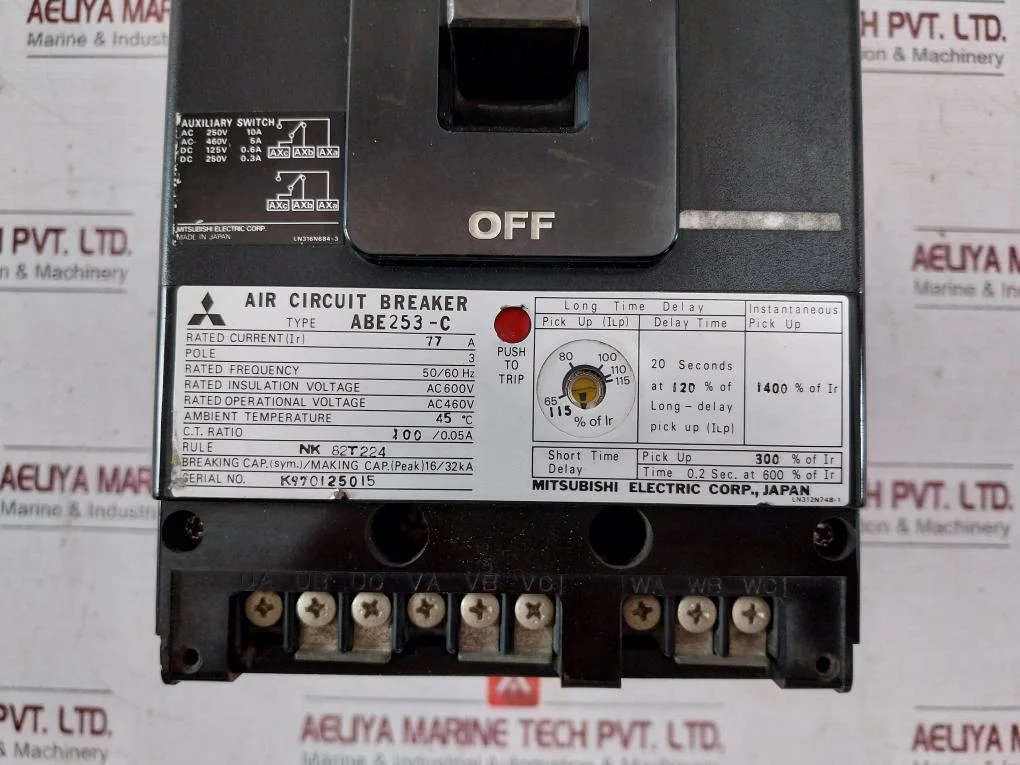

Mitsubishi Electric Abe253-c Air Circuit Breaker 50/60 Hz Ac 600V 100/0.05A

Mitsubishi Electric Abe253-c Air Circuit Breaker 50/60 Hz Ac 600V 100/0.05A
Mitsubishi Electric Corp.,
Air Circuit Breaker
Type: Abe253-c
Rated Current (Ir): 77 A
Pole: 3
Rated Frequency: 50/60 Hz
Rated Insulation Voltage: Ac 600V
Rated Operational Voltage: Ac460V
Ambient Temperature: 45 °C
C.T. Ratio: 100/0.05A
Rule: Nk 82T224
Breaking Cap.(Sym.)/Making Cap.(Peak): 16/32Ka
65-115% Of Ir
20 Seconds At 120% Of Long-delay Pick Up (Ilp)
1400% Of Ir
Short Time: Pick Up 300% Of Ir
Time 0.2 Sec. At 600% Of Ir
Ln312N748-1
Auxiliary Switch
Ac 250V      10A
Ac 460V      5A
Dc 125V      0.6A
Dc 250V      0.3A
Ln316N684-3
Ln420N968-5
Ln420N968-4
Made In Japan
Weight: 6.530 Kg
