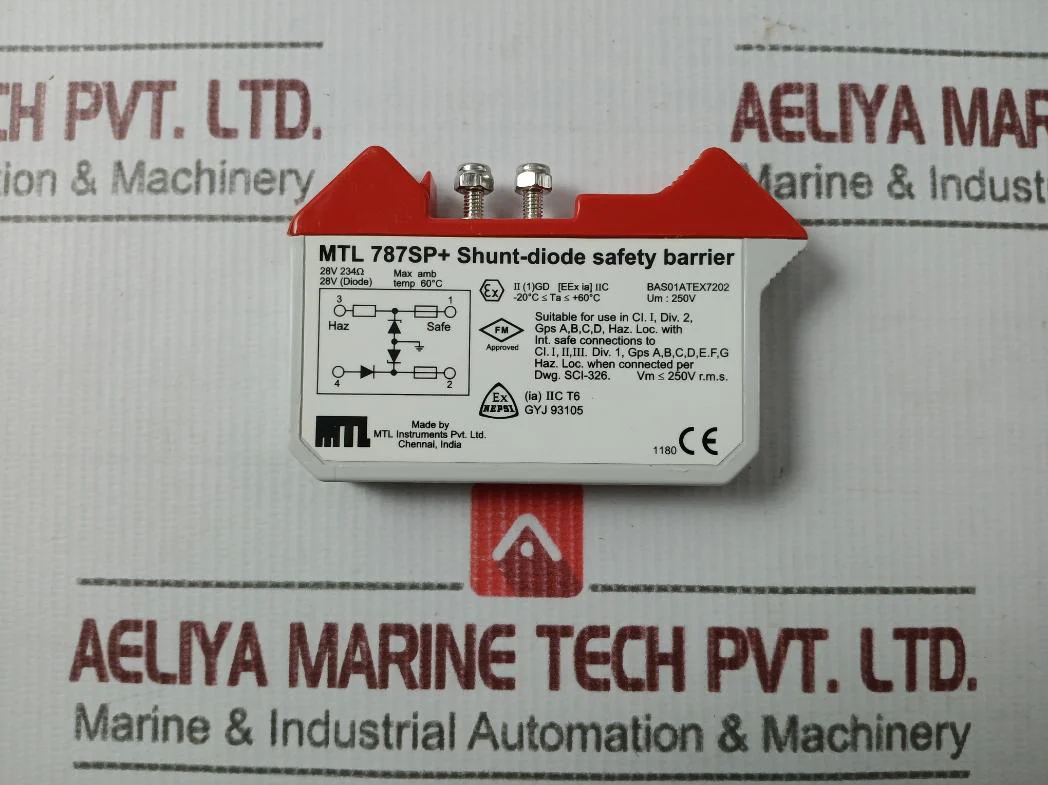

Measurement Technology Mtl787Sp+ 2-channel Shunt-diode Safety Barrier

Measurement Technology Mtl787Sp+ 2-channel Shunt-diode Safety Barrier
Measurement Technology Ltd.
Mtl Instruments Co., Ltd.
Made By Mtl Instruments Pvt. Ltd.
A Member Of The Mtl Instruments Group Plc
Shunt-diode Safety Barrier
787Sp+
Mtl787Sp+
Uo= 28V, Io= 119.3Ma, Po= 0.835 W, Lo= 2.47Mh
Co= 0.13µF, Um= 250V Ac/Dc,
Ambient Temperature= 60°C
28V 234 Ohm
28V (Diode)
Max Amb Temp 60°C
Dwg. Sci-326
Vm 250V R.M.S.
Ambient Temperature And Humidity:
Continuous Use: -20°C To +60°C,
Storage: -40°C To +80°C
5 To 95% (Relative Humidity)
Made In India
Weight: 150 Gm
