Kistler/Bosch Rexroth Ag 2153A0152003Hg Ical Nc Joining Module Rev A Force 15Kn

Kistler/Bosch Rexroth Ag 2153A0152003Hg Ical Nc Joining Module Rev A Force 15Kn

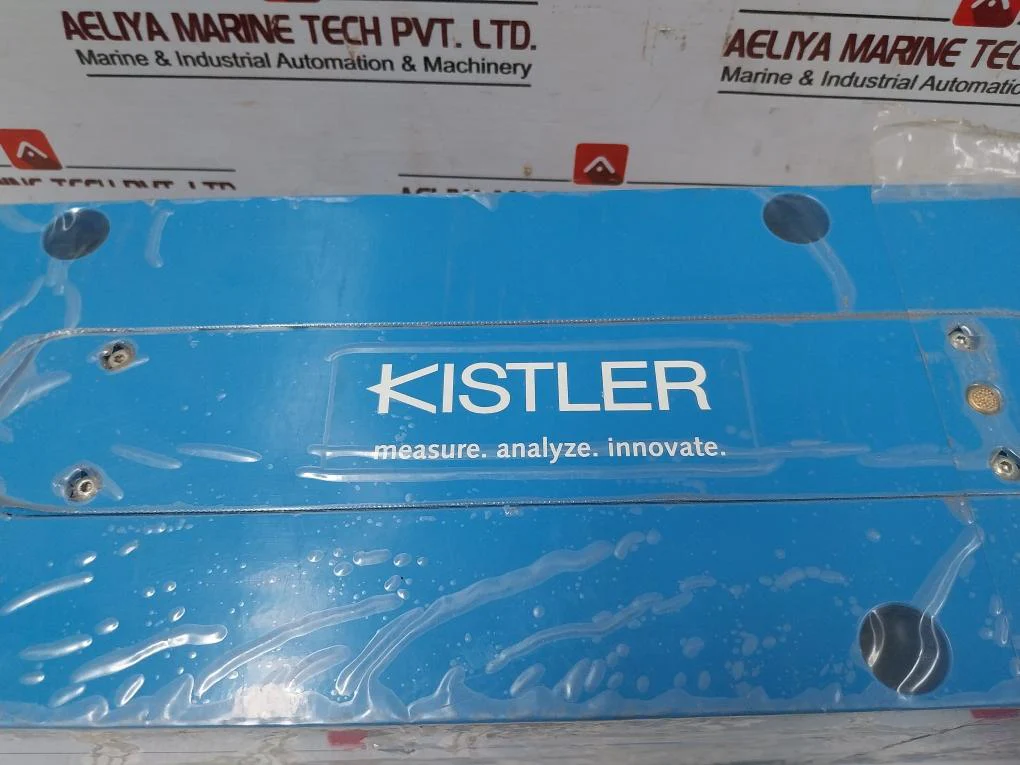

Kistler China Limited
Measure. Analyze. Innovate
Rexroth
Bosch Rexroth Ag,
Wittenstein Alpha Gmbh
Nc Joining Modu
Type: 2153A0152003Hg
Model: Ncfn 15 200 250 Hg
Nominal Force: 15 Kn
Brake: 5 Nm
Rev. A
Ref: X = 30 Mm ≙ 0 Mm
System Overview:
Monitor: 0
Servo Amplifier: 7260411076714
Commutation Offset: Indra Drive (512)
Am48-80
80 90 7/10
S-20030850-f
S4117
Material: K.00003.920.20.00
Le Ncfh 15Kn_2153A0152003Hg
Gno: 18Gr0000510-18

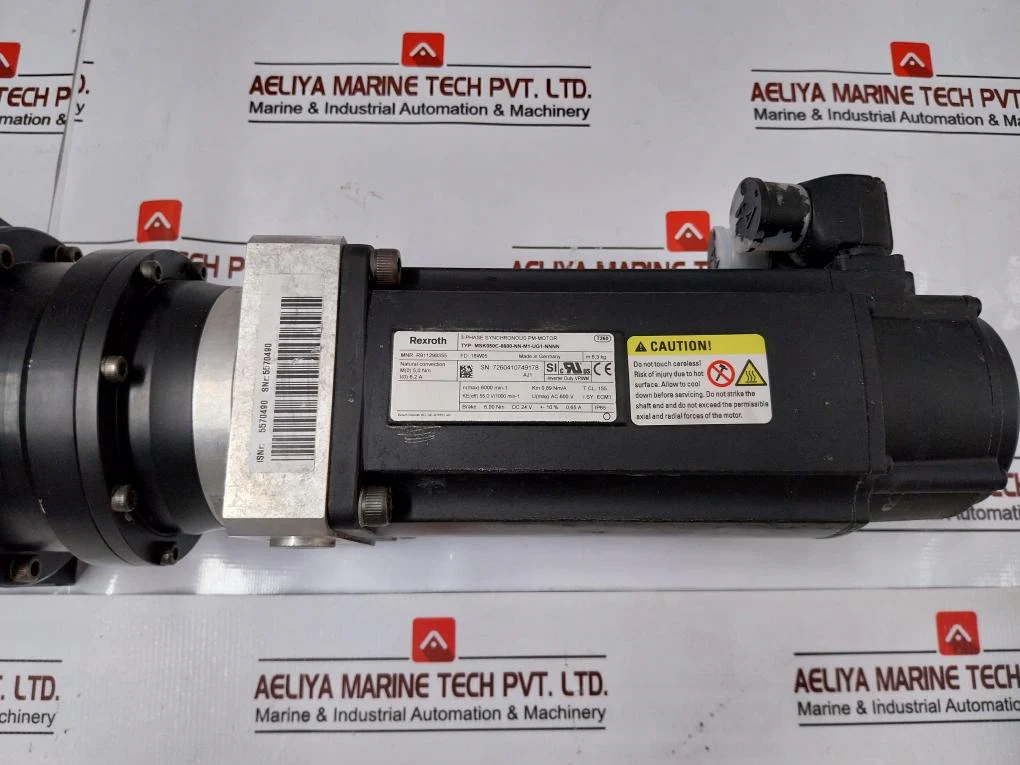

3-phase Synchronous Pm-motor
Typ/Type: Msk050C-0600-nn-m1-ug1-nnnn
Mnr: R911298355
Fd: 18W05
Natural Convection
M (0) 5,0 Nm
I (0) 6,2 A
N (Max) 6000 Min-1
Ke(Eff) 55,0V/1000 Min-1
Km 0,89 Nm/A
U(Max) Ac 600 V
T.Cl. 155
I.Sy. Ecm1
Brake 6,00 Nm
Dc 24V
+-10%
0,65A
Ip 65
7260
 Tp 010S-mf1-7-0E1-2S
Lubricated For Life: Optig.Synt. 800/220
Material No: 55119232
I=7
Made In Germany
Weight: 51 Kg
