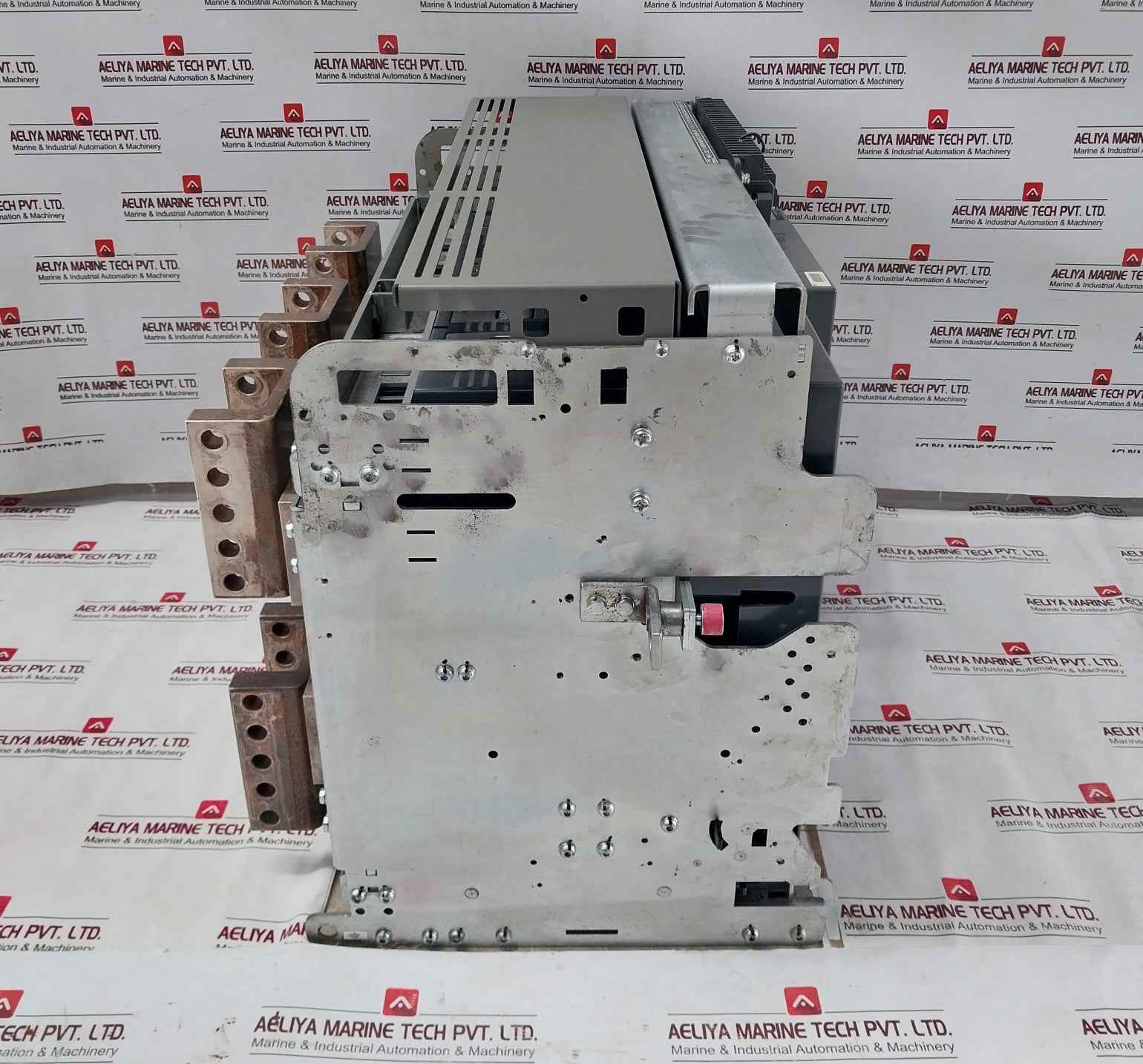

Hyundai Uan50C3C M1C1S168S Air Circuit Breaker 5000A 3-pole 1000V

Hyundai Uan50C3C M1C1S168S Air Circuit Breaker 5000A 3-pole 1000V
Hyundai Heavy Industries Co., Ltd.
Electro Electric Systems
Acb-air Circuit Breaker
Uan50/C Frame
Uan
Uan50C3C M1C1S168S
Afagamaqaxv4
In Max= 5000A
3 Poles (5000 Af)
Ics= 100% Icu
Uimp= 12Kv
Ui= 1000V 50/60 Hz
En/Iec 60947-2 Vde 0660/ Cat. B
Gost R 50030. 2-99 9/1-2000
Ue:               Icu:
550~690V 85 Ka
220~500V 100 Ka
Icw: 85 Ka/1S
Amb. Temp. 45˚C
Upr Sa
In: 4330A
Ict: 5000A
Ct: 5000/ 0.2
Posit'n Switch. Type: Uans Aq
A616-01253
Terminal Tightening Torque: 161~184 (Kgf.Cm)
Uan323~503C
Code: 3223001213
[Dy]: 20160321-018
Dun32~50C(Y)
Code: 3223001292
[Dy]: 20160324-010
Name: U-mht Unit
Code: 3223-0015-82
Name: Uas-cj-5A5B
Code: 3223-0015-81
Name: U Dr Device-2
Name: Uans-c1.9/S01
Code: 5832000245
Cc Adc 100~130
Name: Uans-u4/S04
Code: 5832000272
Uvt Ac 440
Name: Uans-s1.9/S01
Code: 5832000247
Tc Adc 100~130
Uans-m1/M9
(Ians-m1/M9)
Motor Charge/Closing Voltage/Trip Voltage: A/Dc 110V
Dc 125V
Djm (Rev: 4)
160305-002
Part Name: U-mecha’m/C503
Q
Ohm: (6) Ω
U-posit'n-sw (1T1C)
Uvt Controller Ac 440V
Cradle V-type A616-01253
Made In Korea
Weight: 134.500 Kg
