Hyundai Uan50C3C M1C1S168S Acb Air Circuit Breaker 3P 100% Icu 1000V 50/60 Hz

Hyundai Uan50C3C M1C1S168S Acb Air Circuit Breaker 3P 100% Icu 1000V 50/60 Hz
Hyundai Heavy Industries Co., Ltd.
Electro Electric Systems
Acb-air Circuit Breaker
Uan50/C Frame
Uan
Product Code: Uan50C3C M1C1S168S
Afagamaqaxv4
Order Number: 2016Bd00531-0001
In Max= 5000A
3 Poles (5000Af)
Ics= 100% Icu
Uimp= 12Kv
Ui= 1000V 50/60 Hz
En/Iec 60947-2 Vde 0660/ Cat. B
Gost R 50030. 2-99 9/1-2000
Ue               Icu
550~690V  85 Ka
220~500V 100 Ka
Icw: 85 Ka/1S
Amb. Temp. 45˚C
Upr Sa
Ict: 5000A
Ct: 5000/ 0.2
Uans-m1/M9
(Ians-m1/M9)
Adc 110V
Dc 125V
Djm (Rev: 4)
160302-011

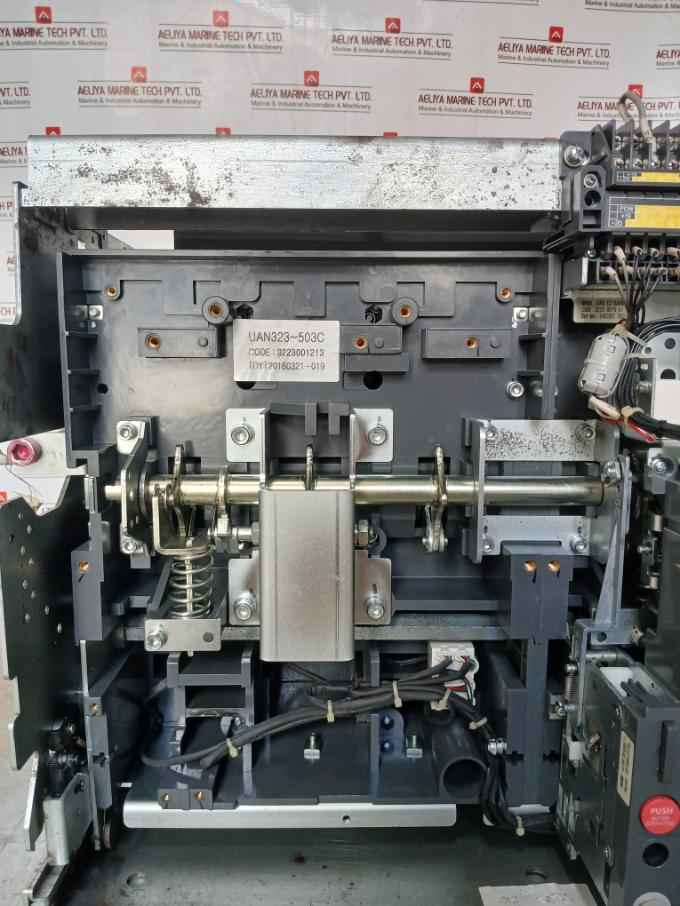

Uan323~503C
Code: 3223001213
[Dy] 20160321-019
Dun32~50C(Y)
Code: 3223001292
[Dy]: 20160324-011
Name: U Dr Device-2
Name: Uas-cj-5A5B
Code: 3223-0015-81
Name: New Mht Unit
Ohm: (6.1) Ω
Name: Uans-c1.9/S01
Code: 5832000245
Cc Adc 100~130
Name: Uans-u4/S04
Code: 5832000272
Uvt Ac 440
Name: Uans-s1.9/S01
Code: 5832000247
Tc Adc 100~130
Posit'n Switch. Type: Uans Aq
Motor Charge (A/Dc110V)
Closing Voltage (A/Dc110V)
Trip Voltage (A/Dc110V)
U-positi'n-sw (1T1C)
Uvt Controller Ac 440V
Cradle V-type
Terminal Tightening Torque: 161~184 (Kgf.Cm)
Made In Korea
Weight: 134 Kg
