Hyundai Uan16A3B M1C1S168J Air Circuit Breaker 1000V 3-pole 50/60Hz

Hyundai Uan16A3B M1C1S168J Air Circuit Breaker 1000V 3-pole 50/60Hz
Hyundai Heavy Industries Co.,Ltd.
Electro Electric Systems
Acb
Uan
Uan16A3B M1C1S168J
Afagamaqaxv4
In Max= 1600 A
3 Poles
Ics= 100% Icu
Uimp= 12Kv
Ui= 1000V
50/60Hz
En/Iec 60947-2
Vde 0660/Cat.B
Gost R 50030.2-99 9/1-2000
Ue Icu
550~690V 65 Ka
220~500V 85 Ka
Icw 65 Ka/1S
Air Circuit Breaker
Amb.Temp: 45°C
Upr Sa
In: 870 A
Ict: 1000 A
Posit’n Switch
Type: Uans Aq
Terminal Tightening Torque:
161~184 (Kgf.Cm)
Uan16/ A Frame
3 Pole (1600Af)
Ct=1000/0.2
In=870A
Motor Charge (A/Dc110V)
Closing Voltage (A/Dc110V)
Trip Voltage (A/Dc110V)
Uvt Controller Ac 440V
Cradle H-type
A616-01075
Dun06-16A (W)
Code: 3223001222
[Sh] 20160201-004
Uvt Ac 440
Tc Adc 100~130
Cc Adc 100~130
Name: Uas-cj-5A5B
Code: 3223-0015-81
Name: New Mht Unit
Ohm: (6.1) Ω
Uan063~163A
Code: 3223001196
[Sh] 20160205-012
Nmc V01.03-16010024
Uans-m1/M9
(Ians-m1/M9)
Adc 110V
Dc 125V
Djm
16021
Name: U-drdevice-1
Name: U-mht Unit
Code: 3223-0015-82
Part Name: U-mecha ‘M/A 203
Name: Uans-s1, 9/S01
Code: 5832000247
Tc Adc 100~130
Code: 5832600245
Cc Adc 100~130

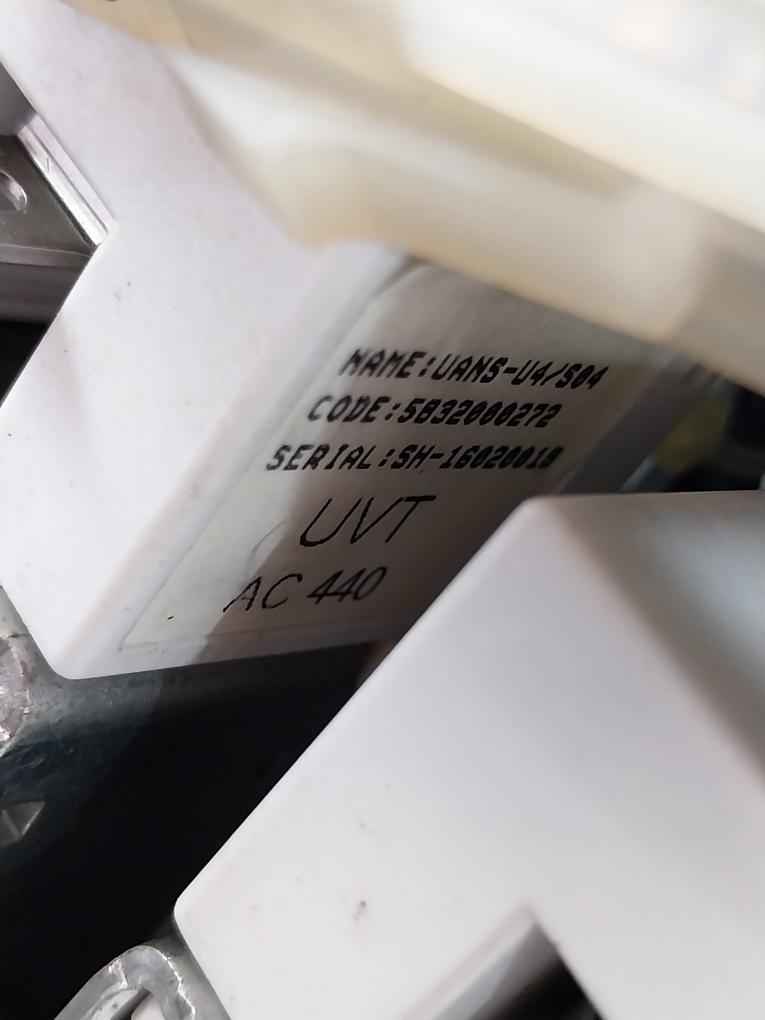

Name: Uans-u4/S04
Code: 5832000272
Uvt Ac 440
Made In Korea
Weight: 64 Kg
