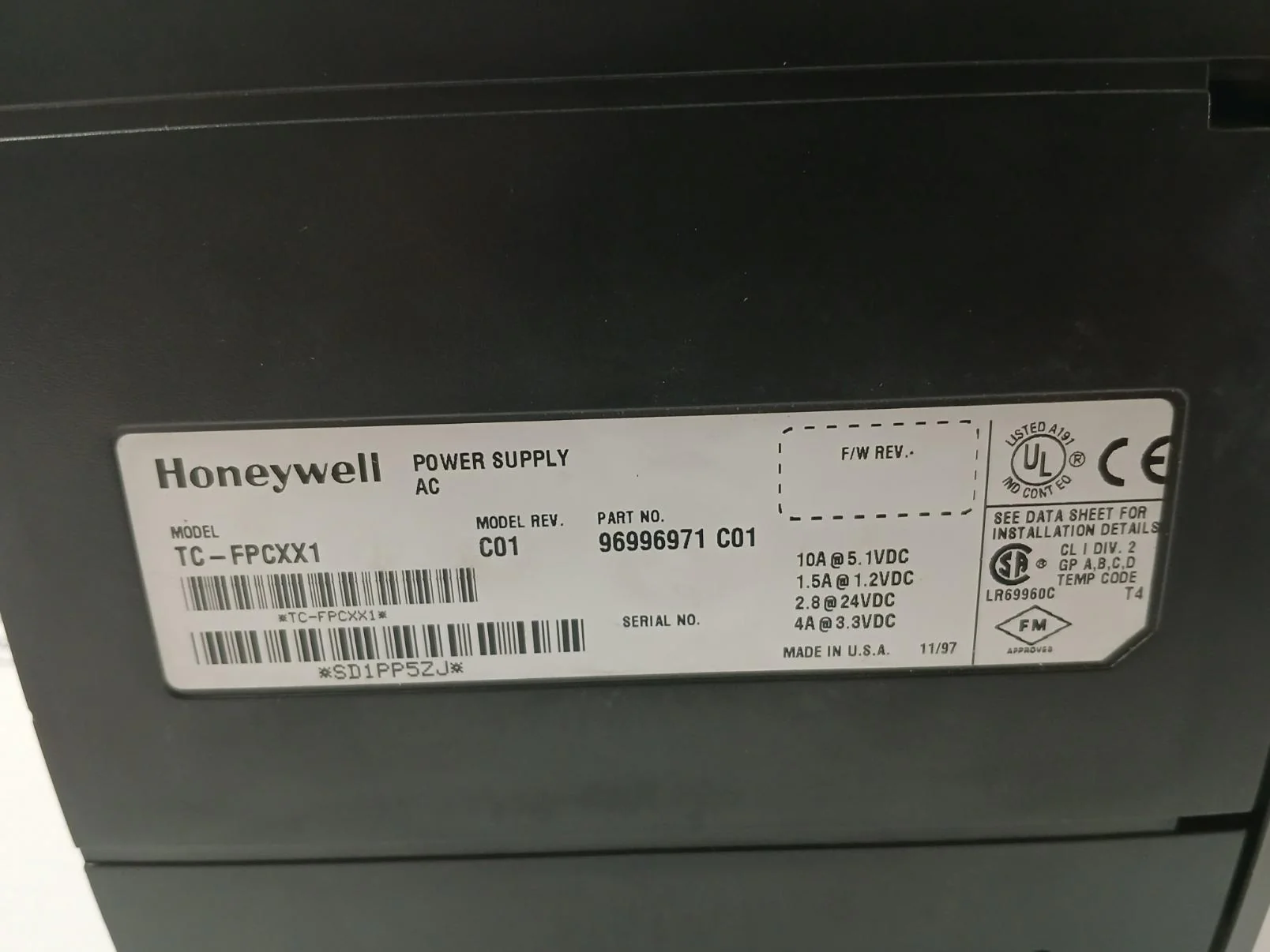

Honeywell
Power Supply
Ac
Model: Tc-fpcxx1
Model Rev.: C01
Part No.: 96996971 C01
10A @ 5.1Vdc
1.5A @ 1.2Vdc
2.8 @ 24Vdc
4A @ 3.3Vdc
Temp Code: T4
Input                   Output
120/240 Vac      10.0A Max @ 5.1Vdc
50/60 Hz              2.8A Max @ 24Vdc
95 Watts            4.0A Max @ 3.3Vdc
150Va                   1.5A Max @ 1.2Vdc
                                70W Max
Redundant Net Interface
Net Interface – Dual/Red. Fw
Model: Tc-ccr012
Cat.Rev.: H01
Part No.: 97042279 A01
F/W Rev.: C04.22
1.0A @ 5.1Vdc
2Ma @ 24Vdc
Temp Code: T5
*St2Ar1Cn*
C/L 96277121
S/S 96277131
S/M 96277141
Fieldbus H1
Fieldbus Interface Module
Model: Tc-ffif01
Rev.: A
Part No.: 51403420-125
F.W. Rev.: A
.007A @ 12Vdc
.45A @ 3.3Vdc
1.1A @ 5.1Vdc
.040A @ 24Vdc
Temp Code: T4A
Dcmc-0701
51309283-500
F.W. Rev.: C
.007A @ 1.2Vdc
Dcmc 9/04
Rev: H
96389891 A01
94V-0
Model: Tc-ccr013
Cat. Rev.: E01
Part No.: 97197971 A01
F/W Rev.: D05.22
*St2Bz8Xh*
000 Daf 8C 98656-542
S96389831 A01
Cat. Rev.: F01
Part No.: 97197972 A01
F/W Rev.: D05.24
*St2Fm3Gz*
96389891 C01
*St2Ar1Fb*

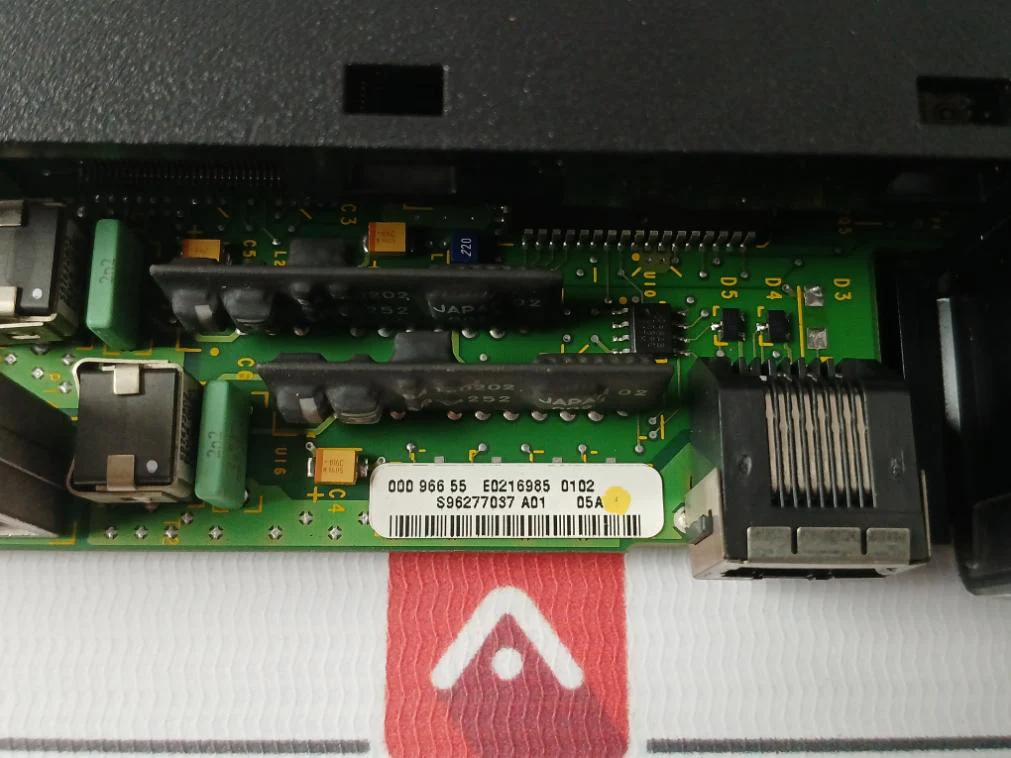

000 966 55
E0216985
S96277037 A01

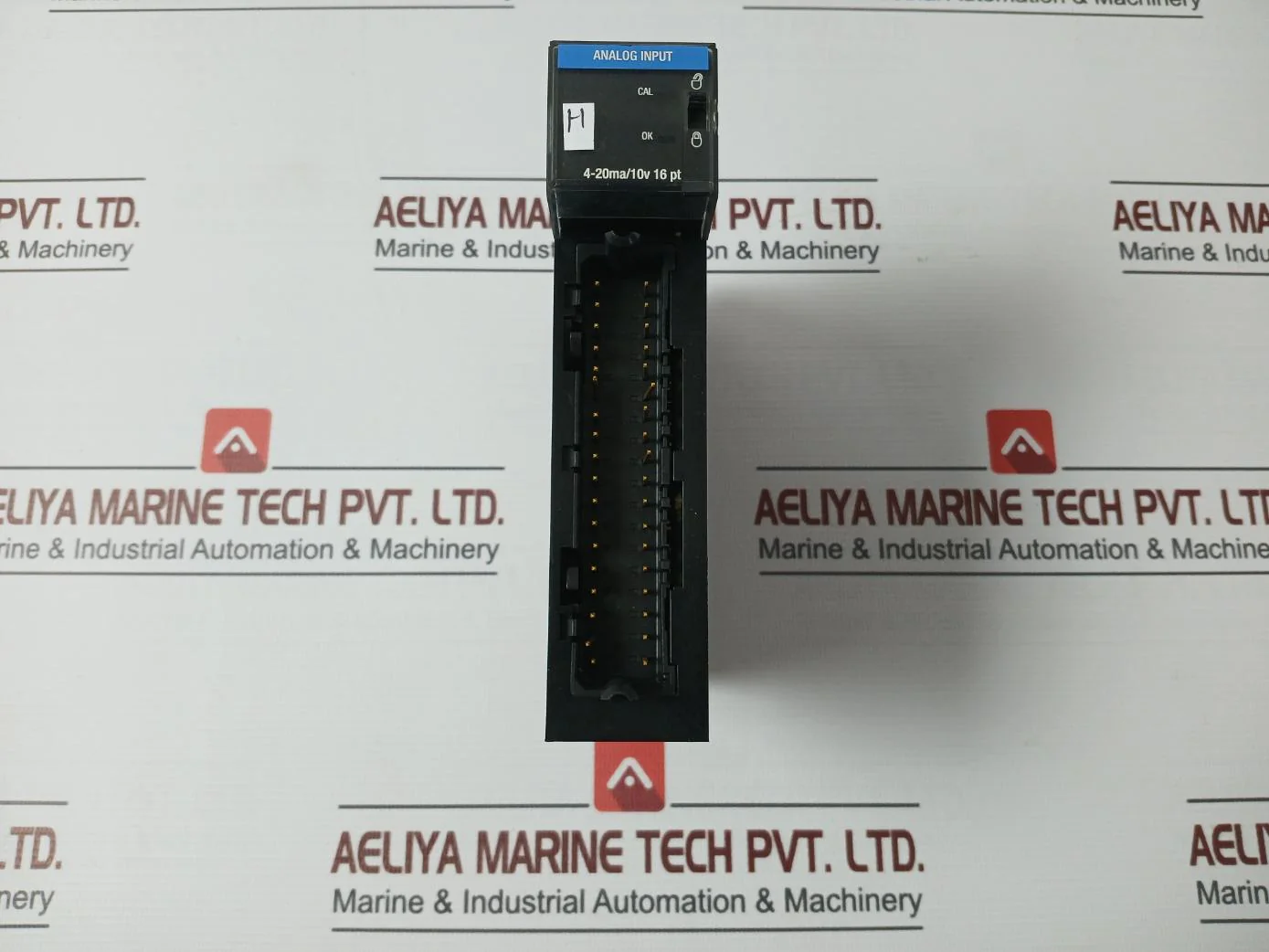

Analog Input
4-20Ma/10V 16 Pt
Model: Tc-iah161
Model Rev.: C01
Part No.: 97062573 A01
F/W Rev.: 1.4
150Ma @ 5.1Vdc
65Ma @ 24Vdc
*St1Bl9Hi*
Model: Tc-0Av081
Model Rev.: B01
Part No.: 97062772 A01
F/W Rev.: 1.5
*St1Bk9Ib*
Made In Usa
Weight: 4.910 Kg
