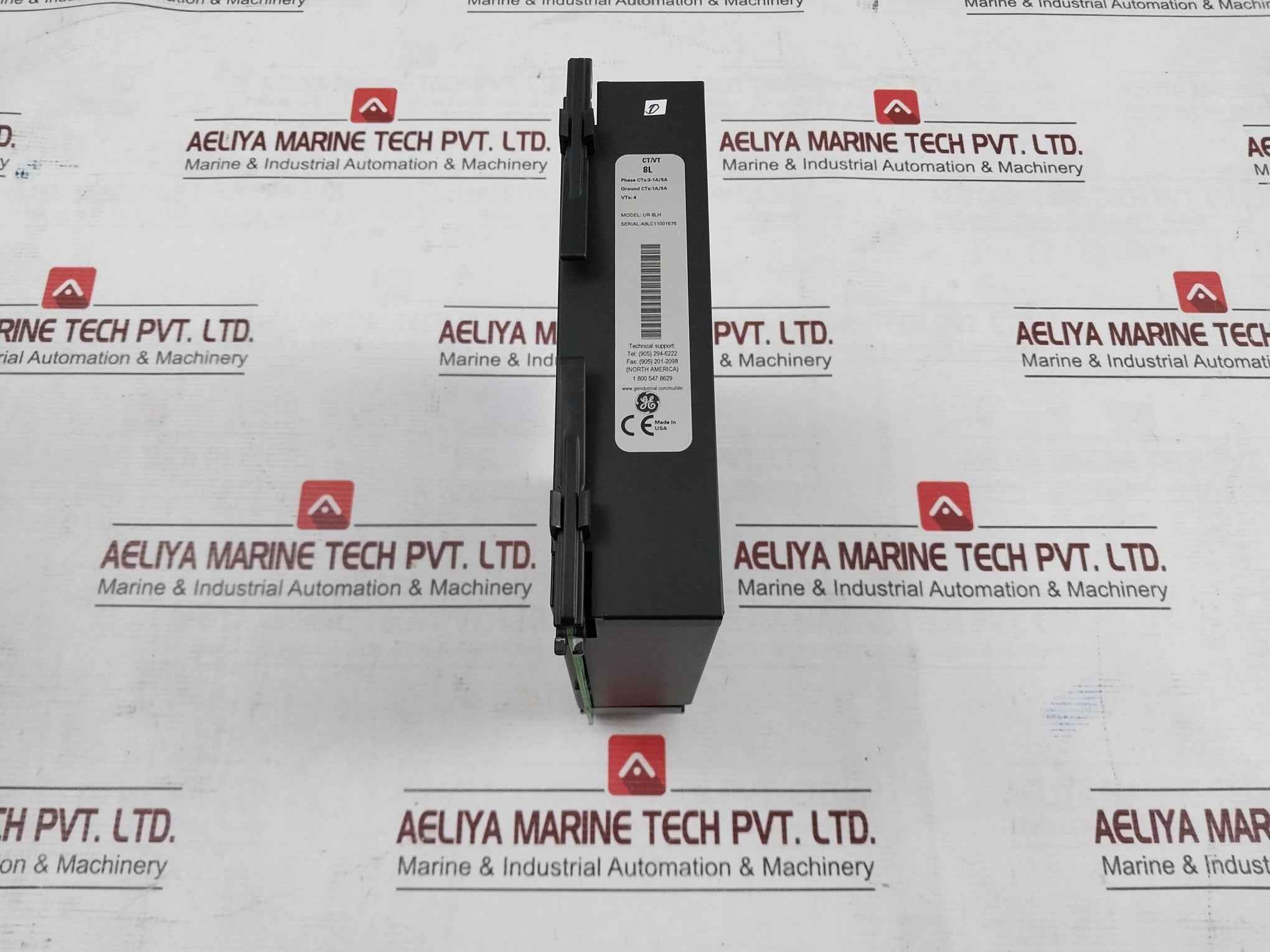

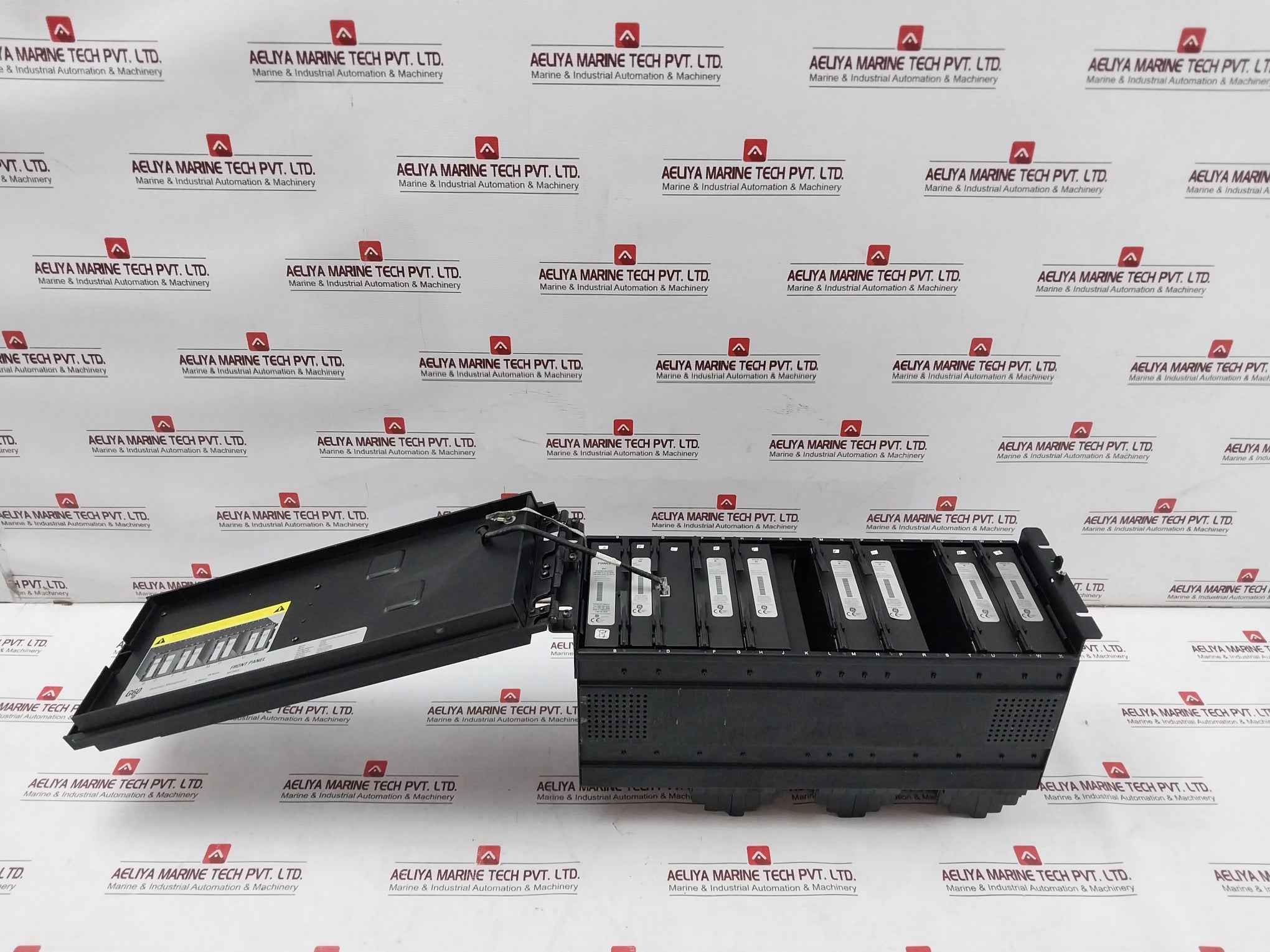

General Electric G60N00Hkhf8Lh6Dm8Lp6Tu4Lw67 Multilin G60 Ur Series Front Panel

General Electric G60N00Hkhf8Lh6Dm8Lp6Tu4Lw67 Multilin G60 Ur Series Front Panel
General Electric
Ge Multilin
Generator Management
Generator Protection System
Ur Series
Front Panel
Multilin G60
Model: G60N00Hkhf8Lh6Dm8Lp6Tu4Lw67
Wiring Diagram: 830700
Firmware: A09Ma590.000
Ratings:
Control Power: 125-250 V---, 0.7A/100-240, 50/60Hz, 0.7A
Contact Inputs: 300V--- Max 10Ma
Power
Rh
Power Rating:
125-250 V--- @35W
100-240 Vac@35Va
Model: Ur Rhh
Ax01Bt11000027
Smps 110V-240V
0501-0099-a1
Assy: #827558 #827559
Cpu
9N
Rs485
10/100Base-t
Model: Ur 9Nh
P/N: 12A0-0310-b2
Wx49B811000765
A09Ma590.000
Ct/Vt
8L
Phase Cts: 3-1A/5A
Ground Cts: 1A/5A
Vts: 4
Model: Ur 8Lh
Sws1037
Rev: 1
P/N: 12A0-0305-a2
Ur 80 Mhz Dsp Board With Self-check
Digital I/O
6D
16 Digital Inputs
Model: Ur 6Dh
P/N: 12A0-0006-c6 01/01
Wu06Cw10046694
Digital I/O
6T
4 Form-a Outputs
No Monitoring
8 Digital Inputs
Model: Ur 6Th
Digital I/O
4L
14 Form-a
No Monitoring
Latching Outputs
Model: Ur 4Lh
Digital I/O
67
8 Form A
No Monitoring
Model: Ur 67H
Made In Usa
Weight: 16.030 Kg
