Abb Ach580-bcr-052A-4+B056+F267 Hvac Enclosed Industrial Control Panel 40 Hp 52A

Abb Ach580-bcr-052A-4+B056+F267 Hvac Enclosed Industrial Control Panel 40 Hp 52A
Abb, Inc.
Abb Oy Drives
Hvac
Enclosed Industrial Control Panel
Product Type: Vfd
Product Name/Model Number: Ach580

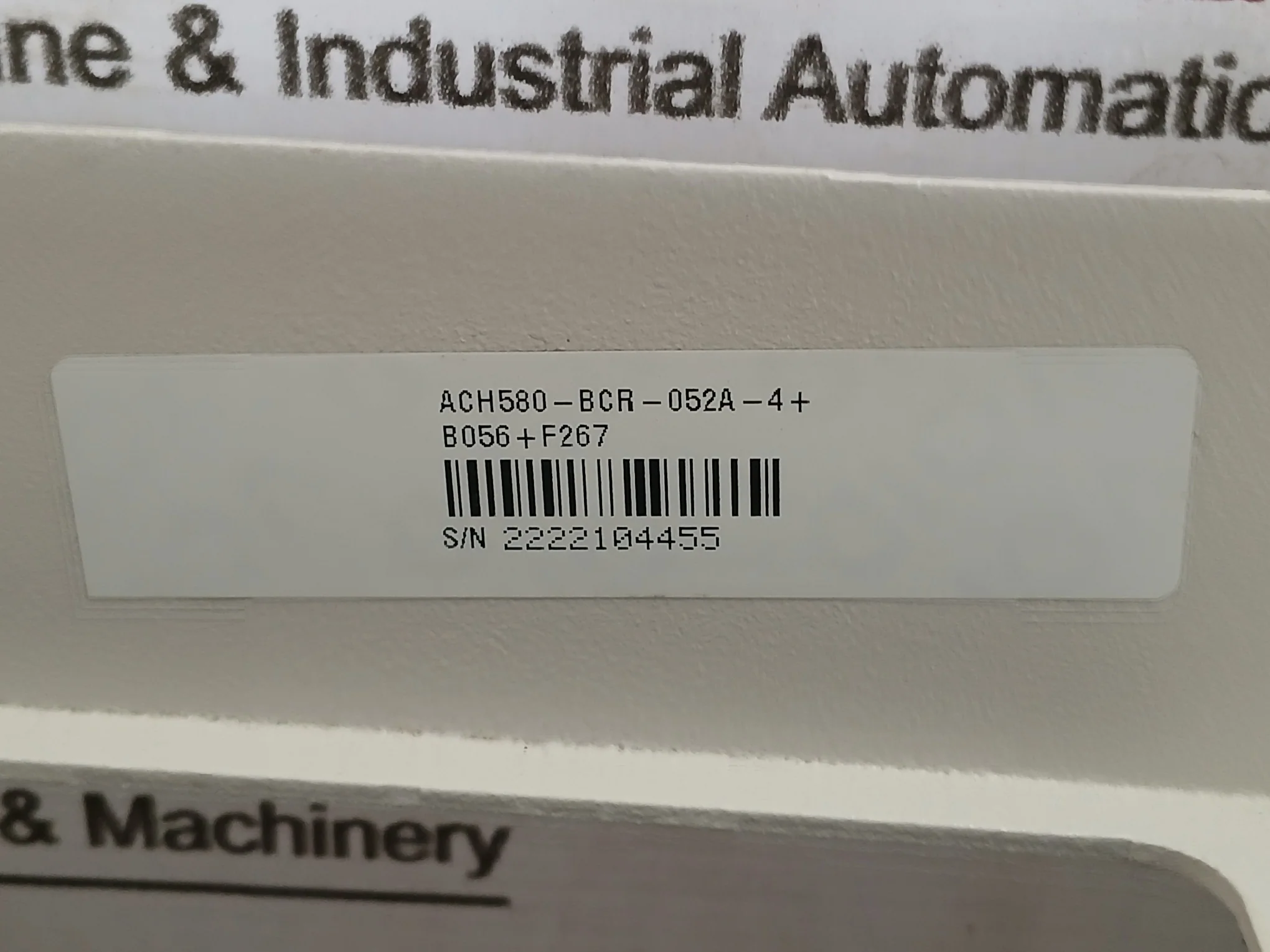

Ach580-bcr-052A-4+B056+F267
Vfd Rating:
Input: 3Ph 50…60 Hz
Output: 3Ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1N)/(I2N): 52 A
E-clipse Package Rating
Short Circuit: 100Ka
Power (Pn): 40 Hp
Enclosure Ul Type 12
Orig. Drive Firmware: 2.15.0.17
Orig. Bypass Firmware: V2.043
Schematic
3Axd50000332175
3Axd50000312160
2222104455
No.: F 77224839
E101649
Type: Rbcu
Rev: K
3Axd50000243624K22111896Sb
E316774
Rbcu V2
Hcsa-4-1
Code: 3Axd50000218653
3Axd50000218653D2050130Tg
Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C2020806Ws
10000007806 D 2/2
Copi-01/C0Pi-01
3Aua0000118152H1523707Ws
E243951
Cp 5
94V-0
Cti 3
221520050397(R6990)
M/N: Ach-ap-h
Code: 3Aua0000064886
Sw: V5.95
3Aua0000064886D2170977Sb
3Axd50000146406
Rev. B
3Axd50000223015
Made In China
Made In Thailand
Weight: 87 Kg
